30KG Automatic Conveyor Filling Machine - Lubricant Filling Equipment - Customized 1-to-1 Filling Solutions

2025-05-17 09:19:02 glzon

Shanghai Guangzhi Automation Equipment Co., Ltd.
We specialize in providing complete packaging equipment including: latex paint fillers, thinner fillers, pure acrylic emulsion fillers, gravimetric fillers, and subsurface fillers. With a top-tier technical team and after-sales service, we deliver professional, high-efficiency solutions tailored to diverse industry needs.

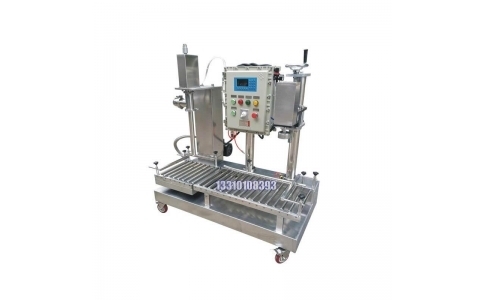

30KG Automatic Conveyor Filling Machine | Lubricant Filling System | Custom 1-to-1 Solutions

30KG Automatic Conveyor Filling Machine | Lubricant Filling Equipment | Customized 1-to-1 Filling Solutions 1

Technical Parameters:

Capacity: 10-30L
Speed: 250-500 barrels/hour
Accuracy: Class 0.2 (±0.1%~0.2%)
Weighing System: Max. 50L capacity, resolution: 1g/2g/5g
Container Types: Square/round drums, open-top/narrow-mouth containers
Operating Temp.: -10°C~45°C
Humidity: <95%
Power Supply: AC380V/220V, 50Hz, <500W
Installation: Leveled on concrete floor (>15mm thickness)
Air Supply: 0.4~0.6MPa
Air Consumption: 8m³/h
Material Inlet: DN40 flange, pressure <0.6MPa

Key Features:

High Automation: PLC-controlled operation with customizable parameters (e.g., bottle height) for unmanned production.
User-Friendly: One-touch start for full automated workflow.
Reliability: Strictly tested electrical components.
Space-Saving: 50% more compact than similar machines for 10-30L filling.
Versatility: Adapts to diverse container layouts.

Operation Flow:

Start → Filling nozzle lowers → Auto tare → Filling begins → Completion → Nozzle retracts.

Applications:

Oils, paints, inks, hardeners, adhesives, solvents, cleaners, thinners, resins, polyurethane, pesticides, pharmaceuticals, lubricants, flavors, edible oils, and other free-flowing liquids.

After-Sales Service:

We deliver flawless support with rapid response times. Our expert team uses advanced diagnostics to resolve issues efficiently, backed by a comprehensive spare parts inventory. Committed to excellence, we ensure your equipment operates optimally with minimal downtime.
