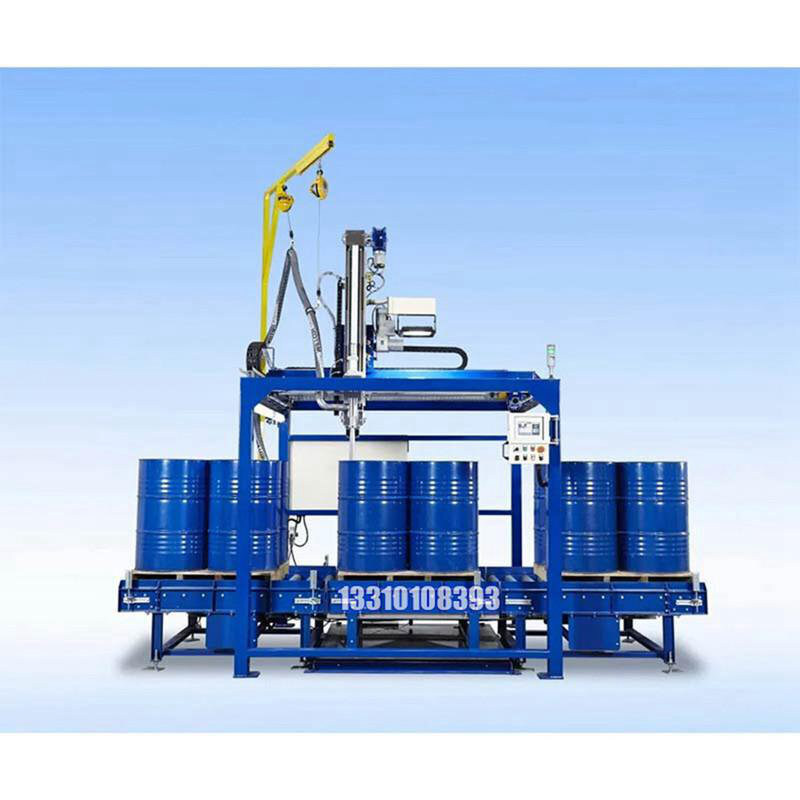

200KG Automatic Filling Machine_Adhesive Filling Machine_High Efficiency, High Precision, Safety & Reliability

200KG Automatic Filling Machine_Adhesive Filling Machine_High Efficiency, High Precision, Safety & Reliability

Our company specializes in: liquid automatic filling machines, granular packaging machines, 200L drum filling machines, and paint/coating filling machines, widely used in chemical, pharmaceutical, food, and daily chemical industries, and highly praised by customers.

Technical Parameters:

• Filling Range: 60kg–200kg

• Filling Method: Electronic weighing

• Accuracy: ±0.2%

• Speed: 40-60L/hour

• Tare Function: Auto-zeroing before each filling

• Power Consumption: ≤350W

• A/D Conversion Rate: 200 times/sec

Key Features:

1. Smart Control System: Fast and precise operation with real-time monitoring for modernized management.

2. High-Precision Weighing Module: Uses load cells for stability and reliability.

3. Powered Roller Conveyor: Supports up to 200kg drums.

4. Leak-Proof Design: Pneumatic filling valve with drip tray for zero leakage.

5. Stainless Steel Construction: SS304 material for durability and corrosion resistance.

Operation Process:

1. Place an empty drum on the conveyor and open the lid manually.

2. Press the start button and align the filling nozzle.

3. Fast filling switches to slow filling near the target weight.

4. Stops automatically when reaching the set weight.

5. Manually seal the drum and move it to the finished product area.

Applicable Materials:

• Flammable & Explosive: Acetone, THF, butanediol, aniline, nitrobenzene, etc.

• Corrosive: Ethanolamine, hydrogen peroxide, phosphoric acid, formic acid, etc.

• Condensation/Crystallization: Polyether, MDI, phenol, paraffin, etc.

• High-Viscosity: Resin, PU adhesive, paint, asphalt, grease, etc.

Custom solutions available for various industries. Contact us for details!
