Fully Automatic Filling Machine - 200L Filling Machine - Water-Based Ink Filling Machine
Product Name

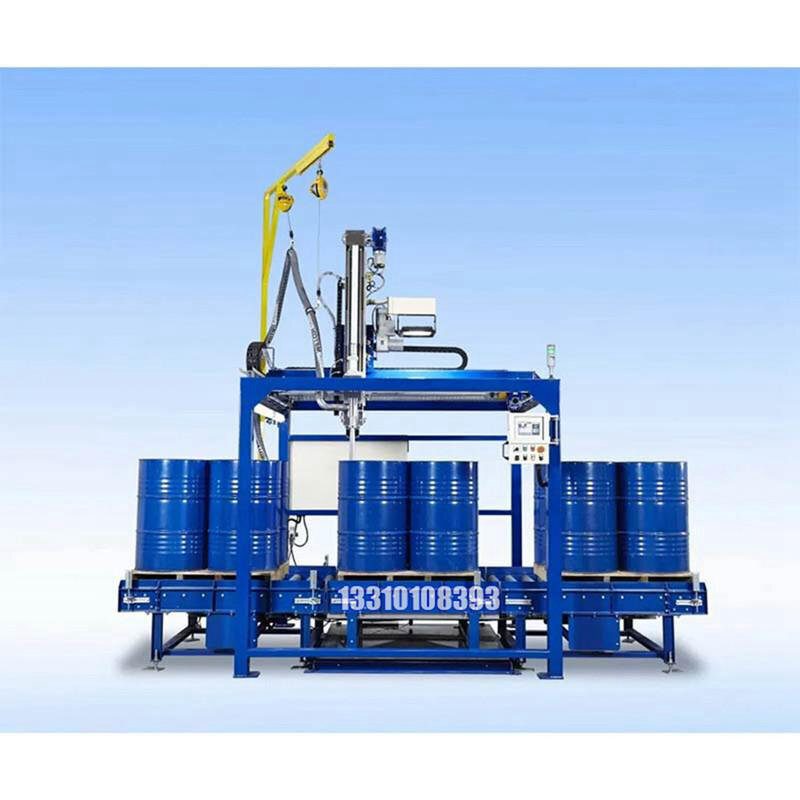

Fully Automatic Liquid Filling Machine - 200L Liquid Filler - Water-Based Ink Filling System
Company Profile
We specialize in liquid filling equipment, including 200L drum fillers, granule packaging machines, paint/coating fillers, and chemical liquid filling systems. Our machines are widely used in chemical, pharmaceutical, food, and daily chemical industries, earning consistent acclaim for reliability and precision.
Technical Specifications
| Parameter | Details |
|---|---|
| Filling Range | 60–200kg |
| Max Capacity | 300kg |
| Resolution | 100g |
| Accuracy | <0.1% error |
| Filling Nozzle | SUS304 stainless steel |
| Container Size | Ø600mm × H1000mm |
| Explosion-Proof Rating | Exd IIB T4 |
| Power Supply | AC220V/50Hz |
| Air Pressure | 0.4–0.8MPa |
| Operating Temperature | -10°C to 40°C |
| Control System | 3-stage pneumatic control |
Key Features
Gravimetric Filling: High precision (±0.1%) unaffected by liquid viscosity or density.
Dual-Speed Feeding: Fast/slow valves optimize speed and accuracy.
Leak-Proof Design: Anti-drip nozzle prevents bubbles and spills.
Wide Compatibility: Handles viscous liquids (inks, adhesives) to low-viscosity solvents.
Operation Workflow
Power On: Start the machine.
Manual Placement: Position the drum on the weighing platform.
Auto-Detection: System aligns the drum and initiates tare function.
Filling Cycle:
Rapid filling → Precision topping → Valve auto-closes at target weight.
Capping: Move drum to clamping zone → Activate pneumatic capping.
Applications
Liquids: Water-based inks, paints, adhesives, solvents, lubricants, curing agents.
Industries: Coatings, pharmaceuticals, food, cosmetics, chemicals.
