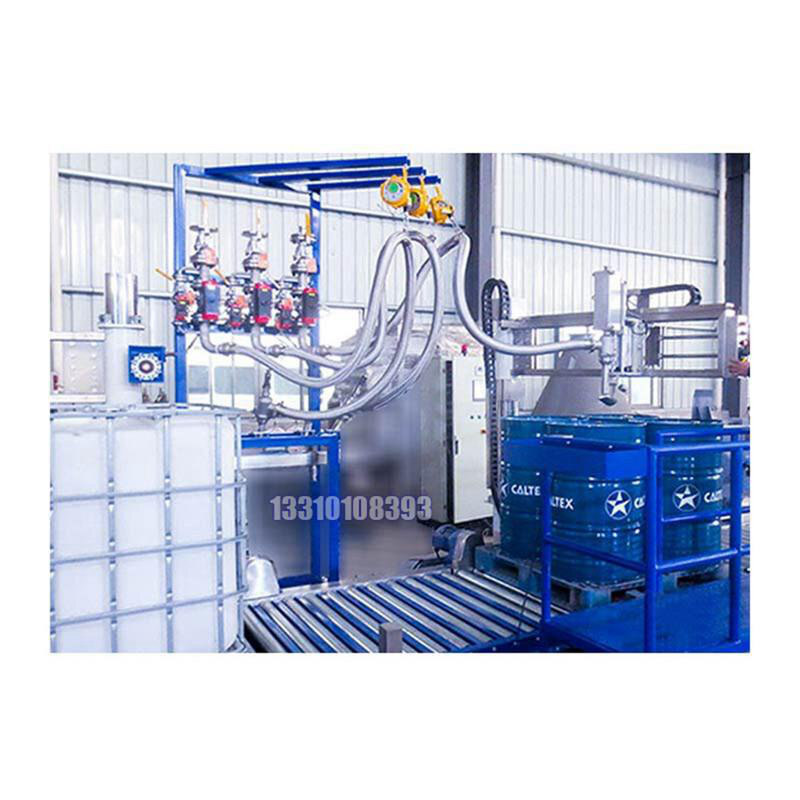

200kg High-Temperature Formaldehyde Filling Machine (Corrosion-Resistant)
Product Name
Formaldehyde Liquid Filling Machine - 200kg Liquid Filler - High-Temperature Liquid Filling System
Company Profile
We are a professional manufacturer of automated liquid filling equipment, including gravimetric fillers, high-temperature fillers, and customized solutions. Our machines are technologically advanced, durable, and cost-effective, tailored for industries requiring precision and reliability.
Technical Specifications
| Parameter | Details |
|---|---|
| Filling Capacity | 60–200kg |
| Speed | 45–55 barrels/hour (200L steel drums) / 12–20 IBCs/hour |
| Accuracy | Class 0.2, ±0.1–0.2% |
| Weighing System | Max 1,500kg, graduation value d: 100g/200g/500g |
| Container Types | Square/round drums, steel/plastic barrels, pallets, IBCs |
| Operating Temperature | -10°C to 45°C |
| Humidity | <95% |
| Power Supply | AC380V/220V, 50Hz, <1.0kW |
| Installation | Fixed on 20mm+ thick concrete floor |
| Air Supply | 0.4–0.6MPa, consumption 10m³/h |
| Material Interface | DN40 flange, inlet pressure <0.6MPa |
Key Features
Gravimetric Precision:
High-accuracy (±0.1%) electronic weighing for corrosive liquids like formaldehyde.
Advanced Control:
German-engineered PLC + HMI touchscreen for real-time monitoring and parameter adjustment.
High-Temperature Adaptability:
SUS304 stainless steel contact parts for hot liquids (e.g., resins, molten additives).
Modular Design:
Integrated filling unit, conveyor, and weighing system for easy maintenance.
Safety & Compliance:
Interlock controls and explosion-proof options (customizable).
Operation Workflow
Setup: Place empty barrel on conveyor → Open lid manually → Align nozzle.
Filling:
Start button → Fast filling → Switch to slow mode at preset weight → Stop at target.
Completion: Manual capping → Move to storage area.
Applications
Chemicals: Formaldehyde, resins, solvents, adhesives.
Food & Pharma: High-temperature oils, syrups, sanitizers.
Industrial: Lubricants, coatings, molten materials.
