200kg Varnish Filling Machine - Swing-Arm Type - High-Viscosity Coating Specialized
Translation & SEO-Optimized Product Introduction
200kg Liquid Filling Machine - Varnish Liquid Filler - Swing-Arm Type
Precision, Flexibility, and Efficiency for High-Viscosity Liquid Handling
Company Profile
As a leading supplier of fully automated liquid filling machines, our product lineup includes:
Quantitative liquid fillers
Magnetic pump liquid filling systems
Multi-head liquid filling stations
Soy sauce/vinegar specialized fillers
Corrosion-resistant liquid filling equipment

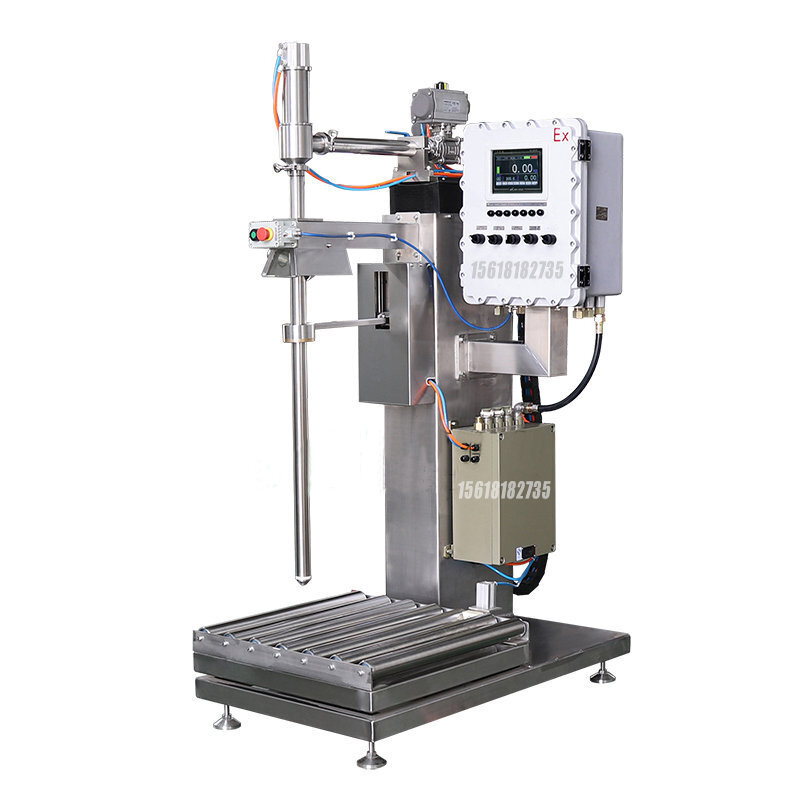

Product Overview: 200kg Varnish Swing-Arm Filling Machine
A specialized industrial solution for accurate, spill-free filling of varnishes, coatings, adhesives, and high-viscosity liquids. Engineered with a swing-arm nozzle and corrosion-resistant materials, this machine is ideal for furniture, automotive, and packaging industries demanding precision and flexibility.
Technical Parameters
| Parameter | Details |
|---|---|
| Filling Capacity | 60kg–200kg (adjustable) |
| Filling Position | Submerged/surface filling (below barrel rim) |
| Weighing Platform Size | 650mm (L) × 650mm (W) roller conveyor |
| Filling Weight | 200L/15–200L (customizable nozzles: Ø45mm) |
| Machine Dimensions | 2,500mm (L) × 1,100mm (W) × 1,600mm (H) |
| Display Resolution | 0.1kg |
| Power Supply | 380V AC, 50Hz, 3-phase |
| Filling Accuracy | ±0.2% |
| Power Rating | 5.5kW |
| Filling Speed | 1 barrel/min (200L standard) |
| Compressed Air | 0.4–0.6MPa |
| Machine Weight | ~200kg |
| Compatible Barrels | Height: 800–920mm/300–920mm; Diameter: <600mm; Mouth: >60mm |
| Inlet Connection | Quick-release hose fitting (Ø50mm) |
| Filling Method | Pump feed (centrifugal/gear/rotor pump options) with variable speed control |
| Anti-Drip System | Vacuum suction device (high-grade leak prevention) |
Key Features
PLC-Controlled Precision: Programmable logic controller with Chinese/English interface for reliable operation.
Swing-Arm Nozzle: 360° rotatable arm with adjustable height for ergonomic filling.
Leak-Proof Design: One-piece molded filling head with quick-release couplings for easy cleaning.
Adaptive Filling: Four-stage (large/medium/small/micro) flow control for stable, high-speed filling.
Safety Systems: No-barrel interlock, differential pressure anti-collision, and auto-tare/gross weight selection.
User-Friendly Interface: Multi-window display for fill volume, barrel count, and total output.
Eco-Friendly: Waste collection system to prevent environmental contamination.
Operating Workflow
Select "Manual/Stop/Auto" mode → 2. Set nitrogen filling time (optional) → 3. Initiate via "Manual Nitrogen" button → 4. Monitor "In Progress/Completed" indicators → 5. Address "Low-Pressure Nitrogen" alerts if triggered.
Applications
Liquids: Solvents, resins, adhesives, lubricants, inks, paints, coatings, detergents, edible oils, and chemicals.
Industries: Furniture manufacturing, automotive assembly, packaging, and chemical processing.
Why Choose This Machine?
Versatility: Handles low-to-high viscosity liquids with pump customization.
Accuracy: ±0.2% precision reduces material waste.
Energy Efficiency: 5.5kW power rating with variable speed control.
Compliance: CE-certified design with explosion-proof options.
