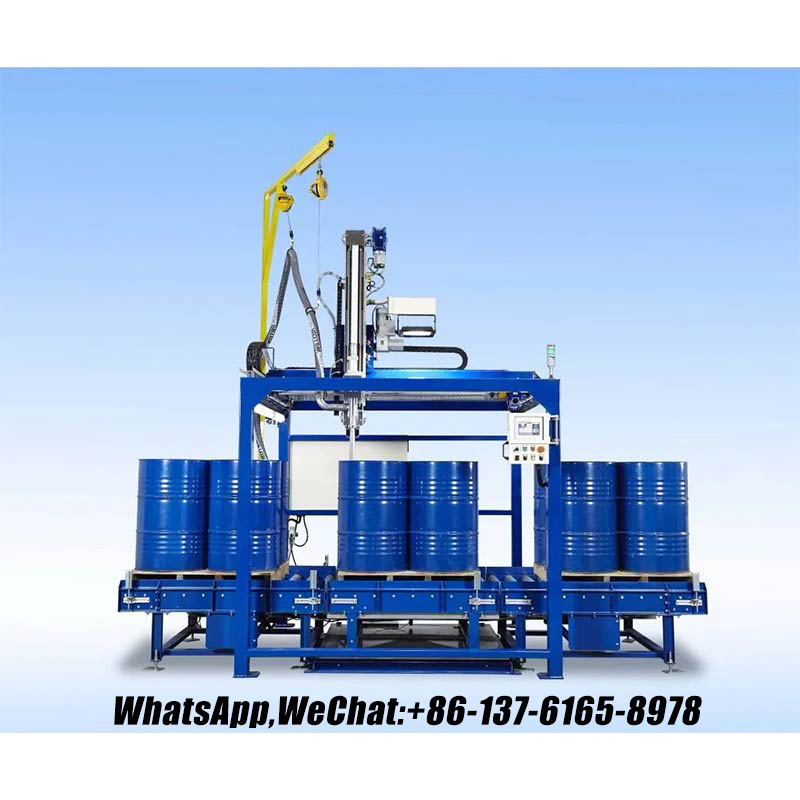

Efficient 200L Liquid Filler with Gear Motor and PLC Control
Efficient 200L Liquid Filler with Gear Motor and PLC Control
Overview
The 200L Liquid Filler is a high-efficiency, automated solution designed for precise and reliable filling of large containers (e.g., drums, IBC totes, or tanks) with liquids. Powered by a high-torque gear motor and advanced PLC control, this equipment ensures consistent performance for industries like chemicals, food, pharmaceuticals, and oils, while minimizing downtime and maximizing productivity.
Key Features
1. High-Capacity & Efficiency
200L per Cycle: Fills up to 200 liters per container with adjustable flow rates (e.g., 50–200 L/min).
Viscosity Handling: Suitable for low to high-viscosity liquids (e.g., syrups, oils, resins, chemicals).
Fast Cycle Times: Optimized for high-throughput operations without compromising accuracy.
2. PLC Automation & Precision
Programmable Control: Fully automated cycles with recipe storage for multiple products and fill volumes.
Touchscreen HMI: Easy-to-use interface for setting parameters, monitoring fill levels, and troubleshooting.
Remote Monitoring: Ethernet/IP integration for data logging, batch reporting, and remote access.
3. Gear Motor Driven Reliability
High Torque & Speed Control: A rugged gear motor ensures smooth operation even under heavy loads or high viscosity.
Variable Speed: Adjustable RPM for fine-tuning flow rates and minimizing splash or foam.
Durability: Sealed gearbox and IP54/IP65 ratings for long-life performance in harsh environments.
4. Robust Design & Safety
Stainless Steel Construction: 304/316L stainless steel for corrosion resistance and compliance with FDA, GMP, and ATEX standards.
Overload Protection: Automated shutoff and alarms for motor protection and spill prevention.
Emergency Stop: Redundant safety switches and emergency stop buttons.
5. Flexibility & Integration
Container Compatibility: Fits standard 200L drums, IBC totes, or custom industrial containers.
Modular Design: Easily integrates with conveyor systems, capping machines, or labelers for fully automated lines.
Nozzle Options: Customizable fixed or flexible hose nozzles for top-fill, bottom-fill, or immersion filling.
6. Environmental & Compliance
Drip-Free Filling: Anti-drip valves and vacuum breakers to prevent leaks and cross-contamination.
ATEX/IECEx Certification: Safe for hazardous environments (e.g., flammable liquids or dust-prone areas).
Easy Cleaning: Removable components and sloped surfaces for quick sanitization.
Optional Enhancements
Weight Integration: Connectivity with checkweighers for 100% weight verification post-fill.
Nitrogen Blanketing: Inert gas purging to prevent oxidation or foaming during filling.
Level Sensors: Radar or ultrasonic sensors for automatic stop at target fill level.
Data Logging: USB/Ethernet export for batch records, traceability, and compliance reporting.
Applications
Industrial Chemicals: Acids, alkalis, solvents, and bulk chemical blends.
Food & Beverage: Edible oils, syrups, sauces, and bulk beverage bases.
Pharmaceuticals: APIs, bulk drug solutions, and sterile liquid formulations.
Oil & Lubricants: Engine oils, greases, and industrial lubricants.
Agriculture: Fertilizers, pesticides, and bulk agrochemicals.
Technical Specifications
Filling Capacity: 200L per cycle (adjustable volume).
Flow Rate: 50–200 L/min (customizable via PLC).
Accuracy: ±0.5% (improves to ±0.2% with weight integration).
Materials: 304/316L stainless steel, PTFE seals, and corrosion-resistant coatings.
Power: 380V/480V/220V (3-phase), 5.5–7.5 kW (depending on motor size).
Dimensions: Compact footprint (e.g., 1.5m x 1m x 2m) with adjustable height for container compatibility.
Environment: Suitable for indoor/outdoor use in -20°C to 50°C environments.
Benefits
Heavy-Duty Performance: Gear motor and stainless steel construction ensure reliability in demanding environments.
Precision & Speed: PLC control and adjustable flow rates optimize accuracy and throughput.
Safety & Compliance: ATEX certification, drip-free design, and automated safety features reduce risks.
Low Maintenance: Sealed gearbox and removable parts minimize downtime and cleaning efforts.
Scalability: Easily expandable for multi-line operations or integration with larger production workflows.
Why Choose This Equipment?
This 200L filler combines industrial-grade efficiency with smart automation to deliver fast, error-free filling for large-volume liquids. Whether you’re processing chemicals, oils, or food products, its robust design and advanced controls make it the ideal choice for high-throughput, low-maintenance operations.
Ready to optimize your bulk liquid filling process? Contact us for a customized quote, site assessment, or demo!
