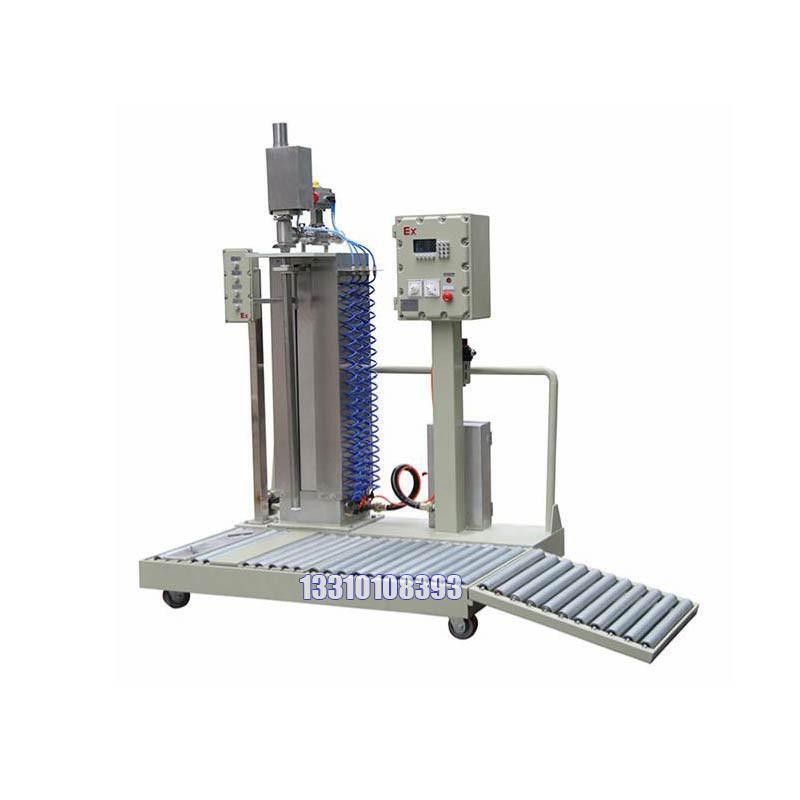

18kg Pneumatic Filling Machine - Glycerin Filling Equipment Manufacturer

2025-05-17 08:46:18 glzon

Shanghai Guangzhi Automation Equipment Co., Ltd. specializes in manufacturing and selling resin filling machines, grease filling machines, disinfectant filling machines, pallet-type filling machines, and multi-functional filling machines, serving industries such as food, pharmaceuticals, and cosmetics. We prioritize customer needs, continuously innovate our products, and have earned our clients' trust and support.

18kg Pneumatic Filling Machine | Glycerin Filling Equipment Specifications:

Filling Capacity: 10-30L
Filling Speed: 120-300 barrels/hour
Filling Accuracy: Class 0.2, ±0.1-0.2%
Weighing System: Max. load 50kg, division value (d): 1g/2g/5g
Container Types: Square/round drums, open-mouth/narrow-mouth containers
Operating Temperature: -10°C to 45°C
Humidity: <95%
Power Supply: AC380V/AC220V, 50Hz, <500W
Installation: Must be fixed horizontally on concrete flooring (min. 15mm thickness)
Air Supply: 0.4-0.6MPa
Air Consumption: 8m³/h
Material Inlet: DN40 standard flange, max. inlet pressure <0.6MPa

Key Features:

Stainless steel construction – Resistant to corrosion and meets hygiene standards for food-grade applications.
Simple & compact design – Easy adjustments and quick container size changeover.
PLC-controlled operation – Ensures stability, high efficiency, and precise weight-based filling.
User-friendly interface – Intuitive text-based operation with clear display.
Leak-free & splash-proof – No foaming, dripping, or residue on container openings.

Operation Steps:

A. Place an empty drum on the scale, aligning the filling nozzle with the drum opening.
B. Press the [Start] button.
C. The system auto-checks container weight, tares it, and begins fast-filling. Speed reduces near target weight, then stops at precise setpoint (±tolerance).
D. Remove the filled drum, place the lid, and press for automatic sealing.
E. Repeat for continuous production.
