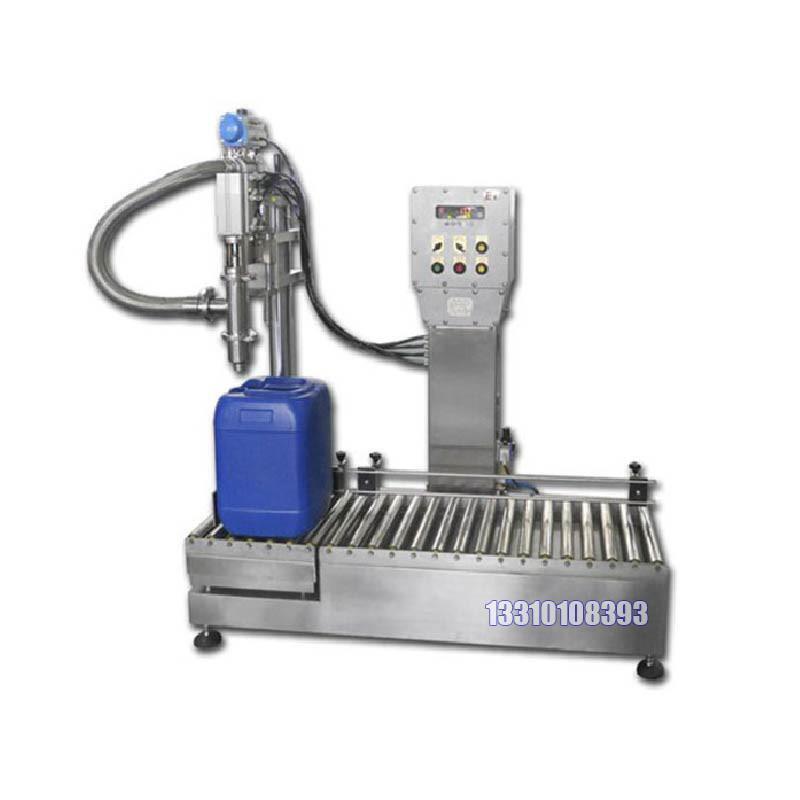

30L Ink Filling Machine | High-Precision Gravimetric Filler

Specifications:

• Capacity: 10-30L

• Explosion-proof: Exd II BT4

• Air Pressure: 0.4–0.6MPa

• Power: AC380V/50Hz, 3-phase

• Speed: 8–10 drums/min (20L)

• Operators: 1–2

• Power Consumption: ~2kW

• Noise: ≤80dB

• Air Usage: ~300L/min

Key Features:

1. Preset Profiles – Stores 20 product recipes for quick setup.

2. Multi-stage Filling – 2-stage (fast/slow) or 3-stage (slow/fast/slow) modes enhance accuracy.

3. Leak-proof Design – High-viscosity nozzles prevent dripping; low-viscosity nozzles include drip trays.

4. Collision Protection – Guards against misaligned drums.

5. Flexible Modes – Supports top/in-can, above/below-liquid filling for diverse materials.

Operation:

A. Align drum under the nozzle.
B. Press Start:

• Tare weight auto-detected.

• Nozzle descends; fills via fast/slow stages.

• Closes at target weight (±tolerance).

• Nozzle retracts; weight verified.
  C. Repeat for continuous production.

Applications:

Inks, paints, automotive coatings, adhesives, resins, solvents, lubricants, and more.

Service:

• 1-year warranty, lifetime maintenance.

• 24/7 support; on-site repairs.

• Cost-price spare parts post-warranty.
