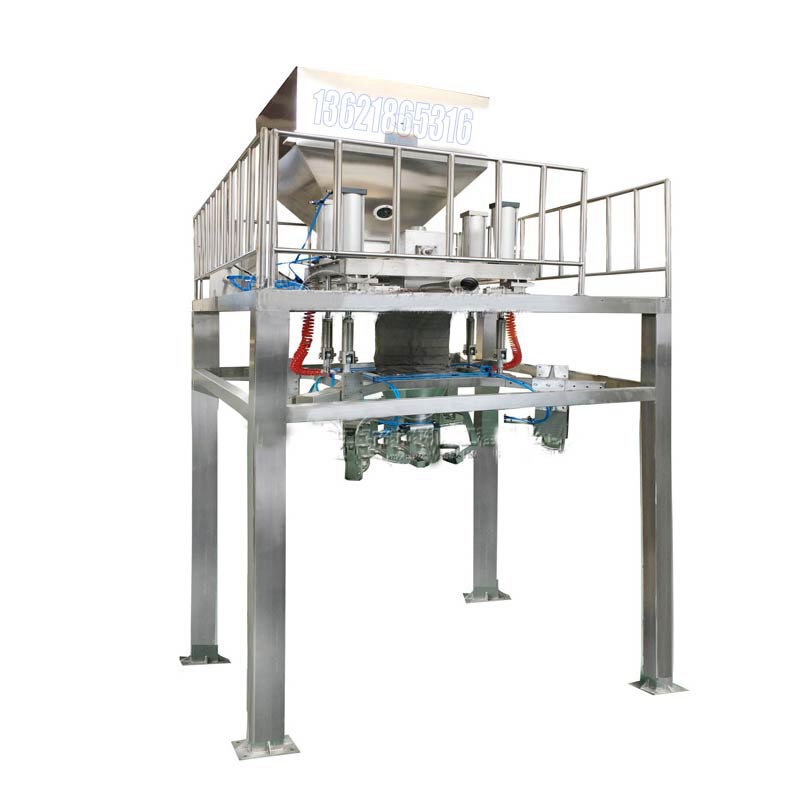

Granule & Mixed Materials Packaging Machine - Chemical Industry Packaging Machine
Product Name
Granule & Mixed Materials Packaging Machine - Chemical Industry Packaging Machine
Company Overview
We specialize in automated large-scale packaging equipment, including robotic FIBC (ton bag) packaging machines, construction mortar packaging systems, functional additive packaging solutions, and more. Our machinery is widely used in industries such as daily chemicals, food, and pharmaceuticals. Committed to customer-centric innovation, we continuously refine production processes and technologies to deliver efficient, stable, and reliable products and services.
Optional Configurations:
Pneumatic valve port
Ultrasonic sealing valve port
Rotor type/pneumatic floating system
Screw valve port / Open-mouth screw feeder
Gravity valve port / Open-mouth gravity feeder
Belt-type open-mouth feeder
FIBC (ton bag) packaging
(Different materials require tailored solutions. Contact our sales team for guidance.)
Technical Specifications
| Parameter | Details |
|---|---|
| Weighing Capacity | 15kg-2 tons/bag |
| Material Compatibility | Granules, powders |
| Material Construction | Carbon steel or stainless steel (corrosion-resistant options available) |
| Packaging Speed | 300–400 bags/hour (25kg/bag) |
| Air Supply | 0.6 MPa, consumption 0.5 m³/h |
| Power Supply | 380V AC, 50Hz |
| Total Power | 2.2 + 0.75 kW |
| Installation Height | 3200mm (adjustable) |
| Operating Temperature | -10°C to 40°C |
| Humidity Tolerance | ≤90% RH (non-condensing) |
| Weighing Resolution | 10g |
| Accuracy | Static: ≤±0.1% FS / Dynamic: ≤±0.2% FS |
Key Features
Customized Design
Tailored for granular/powdered materials with minimal wear parts and high durability.
Precision & Speed
Stepless speed adjustment for rapid filling (300–400 bags/hour) and ±0.2% dynamic accuracy.
Intelligent Control
Programmable PLC system with auto-calibration, tare adjustment, and error compensation.
Safety & Compliance
Explosion-proof and dust-proof design for hazardous environments.
Advanced Weighing
Digital weight display, auto-dusting, and anti-interference capabilities.
Operation Guide
Startup Sequence:
Power on → Activate conveyor → Start packaging machine → Engage feeder → Insert bag → Fill → Weigh → Release bag.
Shutdown Sequence:
Turn off feeder → Empty residual material → Cut main power.
Applications
Industries: Mining, chemicals, construction, agriculture, feed processing.
Materials: Minerals, resins, additives, powdered chemicals, grains.
After-Sales Service
Warranty: 7-day replacement policy, 1-year warranty, lifetime maintenance.
Pricing: Custom quotes available (contact sales for details).
Shipping: Flexible logistics (express for small items, freight for large equipment).
Delivery:
Stock items shipped within 24 hours of payment confirmation.
Custom orders delivered within 35 days with real-time tracking.
