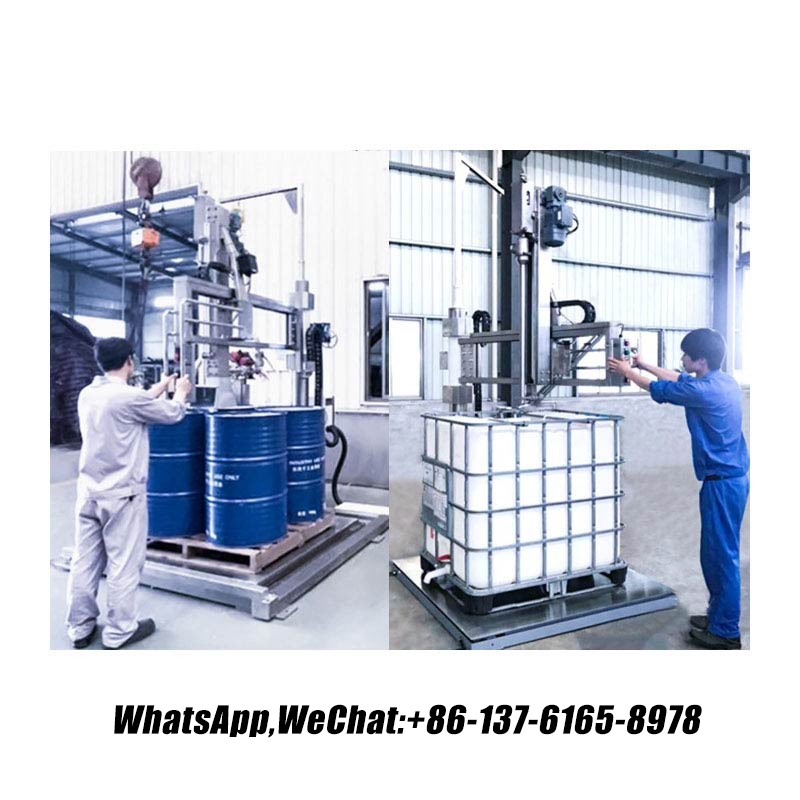

Reliable Aseptic Filling Machines Designed for Four Barrel Use

2025-05-23 14:16:32 glzon

Reliable Aseptic Filling Machines for Four-Barrel Use

Overview

The Aseptic Filling Machine for Four Barrel Use is a high-capacity, precision-engineered solution designed for the aseptic filling of liquids, semi-solids, and viscous products in pharmaceutical, biotech, food, and beverage industries. With a four-barrel configuration, it delivers parallelized filling processes, maximizing efficiency while maintaining strict sterility and compliance with global standards (e.g., cGMP, ISO, ASEP).

Key Features

Four-Barrel Parallel Filling

High Throughput: Simultaneously fill up to 4 products or lines at once, doubling or quadrupling production capacity compared to single-barrel systems.
Independent Control: Each barrel operates with its own servo-driven pumps, valves, and weight cells for precise, individualized filling.

Aseptic & Sterility Assurance

SIP/COP Capability: Steam-in-place (SIP) and clean-out-of-place (COP) functions for automated sterilization of barrels, hoses, and nozzles.
Isolator Technology: Optional RABS (Restricted Access Barrier Systems) or fully enclosed isolator designs to prevent contamination.
A-Class Cleanroom Compatibility: Constructed with stainless steel 316L and polished surfaces (Ra < 0.4 μm).

Precision Filling Technology

Weight-Based Filling: Integrated load cells with ±0.1% accuracy for consistent fill volumes.
Nozzle Design: Customizable contact/non-contact nozzles for vials, bottles, pouches, or syringes.
Foam Control: Vacuum or nitrogen purging to minimize product foaming during filling.

Flexibility & Versatility

Multi-Product Handling: Quick changeover between different products or container types (e.g., glass vials, plastic bottles, bags).
Fill Volume Range: 1–500 ml per container, adjustable via HMI (Human-Machine Interface).
Viscosity Handling: Suitable for low-viscosity (water-like) to high-viscosity (syrups, creams) products.

Automation & Integration

PLC & HMI Controls: Touchscreen interface for recipe storage, real-time monitoring, and remote troubleshooting.
Robotic Integration: Compatible with pick-and-place robots for automated container loading/unloading.
Data Logging: Ethernet/IP connectivity for traceability, batch reporting, and compliance with 21 CFR Part 11.

Safety & Compliance

Locked Seals: Automated clamp closures and pressure sensors to ensure leak-proof operations.
Particle Detection: Inline laser or vision systems to reject contaminated containers.
Validation Pack: IQ/OQ/PQ documentation, calibration certificates, and performance protocols included.

Optional Enhancements

Stopper/Cap Placement: Automated crimping, screw capping, or stopper insertion modules.
Labeling Systems: Inline printers/applicators for expiration dates, lot numbers, or barcodes.
Nitrogen Flushing: Overhead or nozzle-based purging to preserve product integrity post-fill.
Weight Checking: Inline checkweighers for 100% weight verification.

Applications

Pharmaceuticals: Sterile injectables, ophthalmic solutions, vaccines, and oral liquids.
Biotech: Cell cultures, protein solutions, and gene therapy vectors.
Food & Beverage: Juices, dairy products, sauces, and ready-to-eat meals in aseptic pouches.
Chemicals: Specialty chemicals requiring aseptic handling (e.g., cosmetics, industrial fluids).

Technical Specifications

Filling Speed: Up to 1,200 containers/hour (per barrel) depending on product and container type.
Fill Accuracy: ±0.2–0.5% (adjustable via HMI).
Materials: Stainless steel 316L, silicone gaskets, and certified cleanroom polymers.
Power: 220V/380V/480V (customizable), 10–20 kW.
Footprint: Compact design (e.g., 3m x 2m x 2.5m) with modular expansion options.
Environment: Designed for Class A–D cleanrooms or ISO 5–8 environments.

Benefits

Productivity: Four-barrel design reduces cycle time and increases output without compromising sterility.
Flexibility: Supports multi-product runs and container formats with quick changeovers.
Compliance: Full traceability, validation packages, and cGMP-compliant design.
Low Risk: SIP/COP sterilization and isolator options minimize cross-contamination.
ROI: High throughput and reduced labor costs lead to rapid return on investment.

Why Choose This Machine?

Engineered for speed, precision, and sterility, this four-barrel aseptic filler combines parallel processing with advanced automation to meet the demands of high-volume production while ensuring patient safety and product integrity. Perfect for manufacturers requiring scalable, reliable, and compliant aseptic filling solutions.

Ready to optimize your aseptic filling line? Contact us for a customized quote and workflow analysis!
